URS型磁芯
型號Type尺寸Dimension/單位mm備注ABCDEFURS181117.35±0.311.5±0.0510.6±0.57.4±0.26.1±0.27.5±0.2KUR7C18.5±0.509.8±0.110.0±0.57.0±0.27.5±0.56±0.25KURS18.518.5±0.5011.4±0.210.0±0.57.0±0.27.5±0.57.4±0.2GKURS19.0(H)19.1±0.259.4±0.110.2±0.37.0±0.27.8m
在線詢價

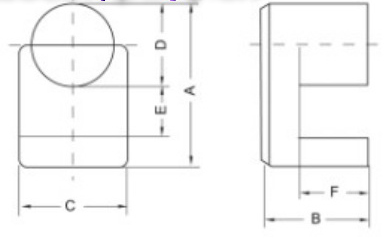

| 型號 Type | 尺寸 Dimension/單位mm | 備注 | |||||
| A | B | C | D | E | F | ||
| URS1811 | 17.35±0.3 | 11.5±0.05 | 10.6±0.5 | 7.4±0.2 | 6.1±0.2 | 7.5±0.2 | K |
| UR7C | 18.5±0.50 | 9.8±0.1 | 10.0±0.5 | 7.0±0.2 | 7.5±0.5 | 6±0.25 | K |
| URS18.5 | 18.5±0.50 | 11.4±0.2 | 10.0±0.5 | 7.0±0.2 | 7.5±0.5 | 7.4±0.2 | G K |
| URS19.0 (H) | 19.1±0.25 | 9.4±0.1 | 10.2±0.3 | 7.0±0.2 | 7.8 min | 5.7±0.15 | G |
| FUT/26B | 26.6±0.35 | 15±0.15 | 14.5±0.4 | 10.1±0.3 | 11.6 min | 10.4±0.2 | K |
| 型號 | 有效參數(shù) | 重量 | AL值 nH/N2 | ||||
| Le(mm) | Ae(mm2) | (g) | PC40 | ||||
| URS18.5 | 43.5 | 38 | 13 | 1500±25% | |||
| URS19 | 10.9 | 1600±25% | |||||
