ZZ半圓形磁芯
品名Name型號Type尺寸Dimension/單位mm備注ABCH56.5-1840W56.5±1.034.5±0.818.25±0.25GH56.5-2140W56.5±1.034.5±0.821.25±0.25GH66.5-18100W66.5±1.043.5±0.818.25±0.25GH66.5-21100W66.5±1.043.5±0.821.25±0.25GH68-24100W68±1.043.5±0.824.25±0.25GH76.5-20200W76.5±1.052.5±0.
在線詢價

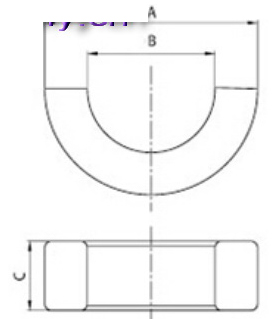

| 品名 Name | 型號 Type | 尺寸 Dimension/單位mm | 備注 | ||
| A | B | C | |||
| H56.5-18 | 40W | 56.5±1.0 | 34.5±0.8 | 18.25±0.25 | G |
| H56.5-21 | 40W | 56.5±1.0 | 34.5±0.8 | 21.25±0.25 | G |
| H66.5-18 | 100W | 66.5±1.0 | 43.5±0.8 | 18.25±0.25 | G |
| H66.5-21 | 100W | 66.5±1.0 | 43.5±0.8 | 21.25±0.25 | G |
| H68-24 | 100W | 68±1.0 | 43.5±0.8 | 24.25±0.25 | G |
| H76.5-20 | 200W | 76.5±1.0 | 52.5±0.8 | 20.25±0.25 | G |
| H76.5-23 | 200W | 76.5±1.0 | 52.5±0.8 | 23.25±0.25 | G |
| H78-24 | 200W | 78±1.0 | 52.5±0.8 | 24.25±0.25 | G |
| H76.5-26 | 300W | 76.5±1.0 | 52.5±0.8 | 26.25±0.25 | G |
| H78-26 | 300W | 78±1.0 | 52.5±0.8 | 26.25±0.25 | G |
| H56.5-18 | 40W | 56.5±1.0 | 34.5±0.8 | 18.25±0.25 | G |
| H56.5-21 | 40W | 56.5±1.0 | 34.5±0.8 | 21.25±0.25 | G |
| H66.5-18 | 100W | 66.5±1.0 | 43.5±0.8 | 18.25±0.25 | G |
| H66.5-21 | 100W | 66.5±1.0 | 43.5±0.8 | 21.25±0.25 | G |
| H68-24 | 100W | 68±1.0 | 43.5±0.8 | 24.25±0.25 | G |
| H76.5-20 | 200W | 76.5±1.0 | 52.5±0.8 | 20.25±0.25 | G |
| H76.5-23 | 200W | 76.5±1.0 | 52.5±0.8 | 23.25±0.25 | G |
| H78-24 | 200W | 78±1.0 | 52.5±0.8 | 24.25±0.25 | G |
| H76.5-26 | 300W | 76.5±1.0 | 52.5±0.8 | 26.25±0.25 | G |
| H78-26 | 300W | 78±1.0 | 52.5±0.8 | 26.25±0.25 | G |
