EPC 型磁芯
型號Type尺寸Dimension/單位mm備注ABminC1C2DEminFHEPC1313.3±0.3010.55.5±0.22.00±0.26.8±0.28.34.6±0.24.75±0.2GEPC1413.5±0.30115.5±0.22.00±0.26.8±0.294.6±0.24.75±0.2GEPC1717.9±0.4147.65±0.23.6±0.28.5±0.210.76.7±0.25.5±0.2GEPC2727.1±0.5021.613.0±0.34.00±0.116.0±0.218.58.
在線詢價

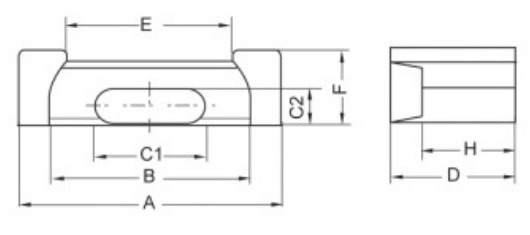

| 型號 Type | 尺寸 Dimension/單位mm | 備注 | |||||||
| A | Bmin | C1 | C2 | D | Emin | F | H | ||
| EPC13 | 13.3±0.30 | 10.5 | 5.5±0.2 | 2.00±0.2 | 6.8±0.2 | 8.3 | 4.6±0.2 | 4.75±0.2 | G |
| EPC14 | 13.5±0.30 | 11 | 5.5±0.2 | 2.00±0.2 | 6.8±0.2 | 9 | 4.6±0.2 | 4.75±0.2 | G |
| EPC17 | 17.9±0.4 | 14 | 7.65±0.2 | 3.6±0.2 | 8.5±0.2 | 10.7 | 6.7±0.2 | 5.5±0.2 | G |
| EPC27 | 27.1±0.50 | 21.6 | 13.0±0.3 | 4.00±0.1 | 16.0±0.2 | 18.5 | 8.0±0.2 | 12.00±0.3 | G |
| EPC39 | 39.6±0.50 | 31 | 17.8±0.2 | 9.7±0.2 | 19.7±0.2 | 25 | 15.7±3 | 14.2±0.2 | G |
| EPC42 | 42.0±0.80 | 33.5 | 16.7±0.3 | 7.30±0.3 | 21.6±0.3 | 26.2 | 14.9±0.3 | 16.20±0.3 | G |
| EPC46 | 46.5±0.80 | 36.2 | 20.85±0.3 | 11.90±0.3 | 22.50±0.3 | 29.1 | 19.4±0.3 | 15.5±0.3 | G |
| 型號 | 有效參數(shù) | 重量(g) | AL值 AL(nH/N2) | ||||||
| C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | GP4 | GH10 | ||||
| EPC13 | 2.46 | 30.6 | 12.5 | 382 | 2.5 | 3000±25% | |||
| EPC14 | 2.46 | 30.6 | 12.5 | 382 | 2.5 | 870±25% | |||
| EPC17 | 1.39 | 36.93 | 28.42 | 1048.7 | 7 | ||||
| EPC27 | 1.34 | 73.1 | 54.6 | 3995 | 19.5 | 1540±25% | |||
| EPC39 | 0.58 | 90.9 | 155.7 | 14158 | 79 | 5000±30% | |||
| EPC42 | 0.92 | 102 | 110 | 16048 | 76 | 2800±25% | |||
| EPC46 | 0.52 | 115.2 | 217.6 | 26806 | 134 | 5500±25% | |||
