EQ EER 磁芯
型號Type尺寸Dimension/單位mm重量g備注ABCDEFEQ251225.0±0.56.0±0.2018.0±0.2522.0±0.511.0±0.253.5±0.217.6GEQ251325.0±0.56.6±0.2018.0±0.2522.0±0.511.0±0.253.5±0.218.2GEQ261226.2±0.56.3±0.2018.0±0.4023.0min11.0±0.254.3±0.219.2GEQ26D26.7±0.57.1±0.1518.0±0.323.5m
在線詢價

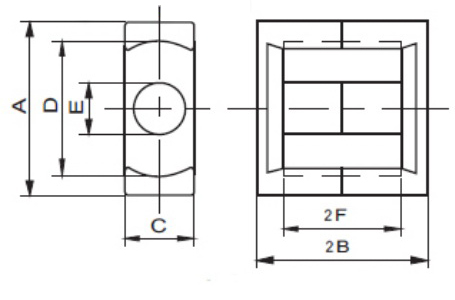

| 型號 Type | 尺寸 Dimension/單位mm | 重量 g | 備注 | |||||
| A | B | C | D | E | F | |||
| EQ2512 | 25.0±0.5 | 6.0±0.20 | 18.0±0.25 | 22.0±0.5 | 11.0±0.25 | 3.5±0.2 | 17.6 | G |
| EQ2513 | 25.0±0.5 | 6.6±0.20 | 18.0±0.25 | 22.0±0.5 | 11.0±0.25 | 3.5±0.2 | 18.2 | G |
| EQ2612 | 26.2±0.5 | 6.3±0.20 | 18.0±0.40 | 23.0min | 11.0±0.25 | 4.3±0.2 | 19.2 | G |
| EQ26D | 26.7±0.5 | 7.1±0.15 | 18.0±0.3 | 23.5min | 11.0±0.2 | 4.6±0.15 | 19.5 | G |
| EQ3310 | 33.0±0.6 | 5.3±0.2 | 23.5±0.3 | 28.7 min | 12.5±0.2 | 3.2±0.2 | 26 | G |
| EQ3413 | 33.85±0.35 | 6.5±0.2 | 25±0.4 | 29.4 min | 14.8±0.3 | 3.8±0.2 | 40 | G |
| EQ4020 | 39.8±0.7 | 10.1±0.25 | 32.6±0.30 | 35.3min | 18.9±0.30 | 6.7±0.3 | 88.6 | G |
| 型號 | 有效參數 | AL值A(chǔ)L(nH/N2) | ||||||
| C1 | Le | Ae | Ve | GP4 | ||||
| (mm-1) | (mm) | (mm2) | (mm3) | |||||
| EQ2512 | 0.36 | 33.8 | 93.8 | 3170 | 6000±25% | |||
| EQ2513 | 0.39 | 36.4 | 93.2 | 3394 | 5200±25% | |||
| EQ2612 | 0.35 | 32 | 104.1 | 3339 | 6000±25% | |||
| EQ26D | 0.41 | 35.8 | 90.95 | 3280 | ||||
| EQ3310 | 0.29 | 38 | 129 | 4896 | ||||
| EQ3413 | 0.237 | 38 | 159 | 6081 | ||||
| EQ4020 | 0.256 | 71.9 | 280.4 | 14470 | 8500±25% | |||
