CQ 型磁芯
型號Type尺寸Dimension/單位mm備注ABCDEFH重量gCQ25A25.5±0.57.65±0.225.5±0.521.8min12.0±0.25.15±0.29.6min34GCQ25B25.5±0.58.45±0.225.5±0.521.8min12.0±0.25.15±0.29.6min39.5GCQ3232.5±0.510.60±0.232.5±0.528.5±0.514.0±0.26.60±0.211.0±0.377G型號Type有
在線詢價

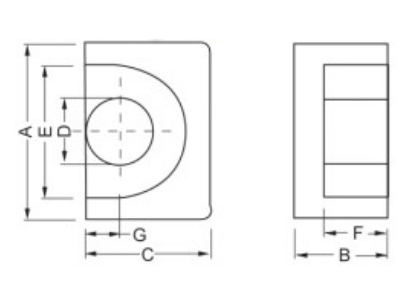

| 型號 Type | 尺寸 Dimension/單位mm | 備注 | |||||||
| A | B | C | D | E | F | H | 重量g | ||
| CQ25A | 25.5±0.5 | 7.65±0.2 | 25.5±0.5 | 21.8 min | 12.0±0.2 | 5.15±0.2 | 9.6 min | 34 | G |
| CQ25B | 25.5±0.5 | 8.45±0.2 | 25.5±0.5 | 21.8 min | 12.0±0.2 | 5.15±0.2 | 9.6 min | 39.5 | G |
| CQ32 | 32.5±0.5 | 10.60±0.2 | 32.5±0.5 | 28.5±0.5 | 14.0±0.2 | 6.60±0.2 | 11.0±0.3 | 77 | G |
| 型號 Type | 有效參數(shù)Effective parameter | AL值 AL(nH/N2) | |||||||
| C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | GP4 | |||||
| CQ25A | 0.399 | 49.2 | 119.6 | 5886 | 5000±25% | ||||
| CQ25B | 0.369 | 50.4 | 136.5 | 6880 | 5000±25% | ||||
| CQ32 | 0.25 | 48.2 | 189 | 9110 | 7400±25% | ||||
