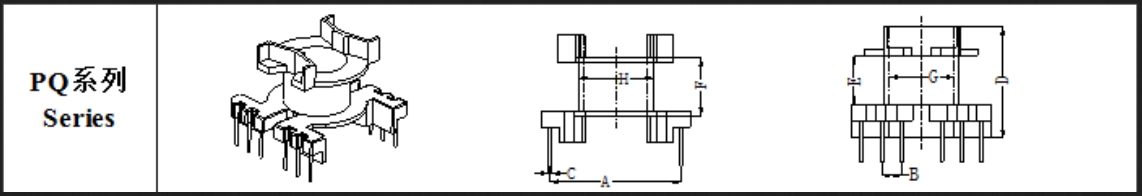

PQ系列
飛灝骨架類產品目錄索引FeiHao CatalogueIndex序號型號品名ABC/ΦDEFG/ΦH/Φ完整尺寸NumberTypeModelnameB1B2B31PQ-2001PQ-2016(6+8P)20.33.852.50.618.78109.211.2點擊查看2PQ-2002PQ-2020(6+8P)20.33.852.50.622.611.913.99.211.2點擊查看3PQ-2601PQ-2620(6+6P)25.43.57.60.6219.311.112.414.3點
在線詢價 飛灝骨架類產品目錄索引
FeiHao Catalogue Index
| 序號 | 型 號 | 品 名 | A | B | C/Φ | D | E | F | G/Φ | H/Φ | 完整尺寸 | ||
| Number | Type | Model name | B1 | B2 | B3 | ||||||||
| 1 | PQ-2001 | PQ-2016(6+8P) | 20.3 | 3.8 | 5 | 2.5 | 0.6 | 18.7 | 8 | 10 | 9.2 | 11.2 | 點擊查看 |
| 2 | PQ-2002 | PQ-2020(6+8P) | 20.3 | 3.8 | 5 | 2.5 | 0.6 | 22.6 | 11.9 | 13.9 | 9.2 | 11.2 | 點擊查看 |
| 3 | PQ-2601 | PQ-2620(6+6P) | 25.4 | 3.5 | 7.6 | 0.6 | 21 | 9.3 | 11.1 | 12.4 | 14.3 | 點擊查看 | |
| 4 | PQ-2601-2 | PQ-2620(6+6P) | 25.4 | 3.8 | 7.6 | 0.8 | 21 | 9.3 | 11.1 | 12.4 | 14.3 | 點擊查看 | |
| 5 | PQ-2601-1 | PQ-2620(6+6P) | 25.5 | 3.8 | 7.6 | 0.6 | 20.1 | 9.1 | 11 | 12.4 | 14.3 | 點擊查看 | |
| 6 | PQ-2601-3 | PQ-2620(6+6P) | 25.5 | 3.8 | 7.6 | 0.8 | 21 | 9.1 | 11.1 | 12.4 | 14.3 | 點擊查看 | |
| 7 | PQ-2602 | PQ-2625(6+6P) | 25.4 | 3.8 | 7.6 | 0.6 | 25.4 | 13.8 | 15.6 | 12.4 | 14.1 | 點擊查看 | |
| 8 | PQ-2602-2 | PQ-2625(6+6P) | 25.4 | 3.8 | 7.6 | 0.8 | 25.4 | 13.8 | 15.7 | 12.3 | 14.1 | 點擊查看 | |
| 9 | PQ-2602-1 | PQ-2625(6+6P) | 25.4 | 3.8 | 7.6 | 0.6 | 14.6 | 13.7 | 15.6 | 12.4 | 14.2 | 點擊查看 | |
| 10 | PQ-2602-3 | PQ-2625(6+6P) | 25.4 | 3.8 | 7.6 | 0.8 | 14.6 | 13.7 | 15.6 | 12.4 | 14.2 | 點擊查看 | |
| 11 | PQ-2603 | PQ-2625(4+4P) | 20 | 6.6 | 8.13 | 0.6 | 23.8 | 13.9 | 15.8 | 12.7 | 14 | 點擊查看 | |
| 12 | PQ-2604 | PQ-2625(6+2+6P) | 29.5 | 7.6 | 3.8 | 3.8 | 0.7 | 25.6 | 13.9 | 15.8 | 12.3 | 14 | 點擊查看 |
| 26.3 | |||||||||||||
| 13 | PQ-2606 | PQ26(6+2+6P) | 25.4 | 3.8 | 7.5 | 0.7 | 21.1 | 9.1 | 11.2 | 12.5 | 14.2 | 點擊查看 | |
| 14 | PQ-2606-1 | PQ26(6+2+6P) | 25.4 | 3.8 | 7.5 | 0.7 | 24 | 9.1 | 11.2 | 12.5 | 14.2 | 點擊查看 | |
| 15 | PQ-2606-2 | PQ26(6+2+6P) | 25.4 | 3.8 | 7.5 | 0.7 | 25.3 | 9.1 | 11.2 | 12.5 | 14.2 | 點擊查看 | |
| 16 | PQ-2607 | PQ26(3+3P) | 15.9 | 4 | 0.8 | 26.5 | 9.3 | 11.2 | 12.3 | 14.3 | 點擊查看 | ||
| 17 | PQ-2611 | PQ26(6+6P) | 25.5 | 3.8 | 7.6 | 0.8 | 34.5 | 13.6 | 15.9 | 12.45 | 14.3 | 點擊查看 | |
| 18 | PQ-2613 | PQ26(6+6P) | 25.5 | 3.8 | 7.6 | 0.8 | 29.9 | 9 | 11.2 | 12.5 | 14.8 | 點擊查看 | |
| 19 | PQ-3201 | PQ-3220(6+6P) | 30 | 5 | 7.5 | 0.8 | 21.8 | 9 | 10.9 | 14 | 16 | 點擊查看 | |
| 20 | PQ-3201-2 | PQ-3220(6+6P) | 30.5 | 5 | 7.5 | 0.8 | 21.8 | 9 | 10.9 | 14 | 16 | 點擊查看 | |
| 21 | PQ-3201-1 | PQ-3220(6+6P) | 30 | 5 | 7.5 | 0.8 | 19.4 | 9.7 | 11.3 | 13.8 | 25.4 | 點擊查看 | |
| 22 | PQ-3201-3 | PQ-3220(6+6P) | 30.5 | 5 | 7.5 | 0.8 | 19.4 | 9.7 | 11.3 | 13.8 | 25.4 | 點擊查看 | |
| 23 | PQ-3201-4 | PQ-3220(6+6P) | 15 | 5 | 7.5 | 0.8 | 21.8 | 9 | 10.9 | 14 | 16 | 點擊查看 | |
| 24 | PQ-3202 | PQ-3230(6+6P) | 30 | 5 | 7.5 | 0.8 | 31.4 | 18.5 | 20.4 | 14 | 16 | 點擊查看 | |
| 25 | PQ-3202-1 | PQ-3230(6+6P) | 30.5 | 5 | 7.5 | 0.8 | 31.4 | 18.5 | 20.4 | 14 | 16 | 點擊查看 | |
| 26 | PQ-3203 | PQ-3225(6+6P) | 30 | 5 | 7.5 | 0.8 | 26.7 | 13.9 | 15.8 | 14 | 16 | 點擊查看 | |
| 27 | PQ-3203-1 | PQ-3225(6+6P) | 30.5 | 5 | 7.5 | 0.8 | 26.7 | 13.9 | 15.8 | 14 | 16 | 點擊查看 | |
| 28 | PQ-3203-2 | PQ-3225(6+6P) | 30.5 | 5 | 7.5 | 0.8 | 26.7 | 13.9 | 15.8 | 14 | 16 | 點擊查看 | |
| 29 | PQ-3204 | PQ-3225(6+6P) | 30 | 5 | 7 | 0.8 | 26.7 | 13.9 | 15.8 | 14 | 16 | 點擊查看 | |
| 30 | PQ-3501 | PQ-3535(6+6P) | 35.5 | 5 | 10 | 1 | 37.4 | 21.4 | 24.4 | 14.8 | 16.8 | 點擊查看 | |
| 31 | PQ-3525 | PQ-3535(6+6P) | 36.4 | 5 | 10 | 0.8 | 24.7 | 13.7 | 15.8 | 14.8 | 16.5 | 點擊查看 | |
| 32 | PQ-4040 | PQ-4040(6+6P) | 38 | 5 | 15 | 0.8 | 41 | 26.5 | 28.6 | 15.3 | 17.5 | 點擊查看 | |
| 33 | PQ-5002 | PQ50(8+8P) | 45 | 5.08 | 15.24 | 1 | 44.8 | 25.55 | 28.8 | 15.7 | 17.7 | 點擊查看 | |
| 34 | PQ-5003 | PQ50(6+6P) | 45.5 | 7.4 | 12.4 | 1.2 | 53.3 | 31.59 | 35.8 | 21.1 | 23.5 | 點擊查看 | |
