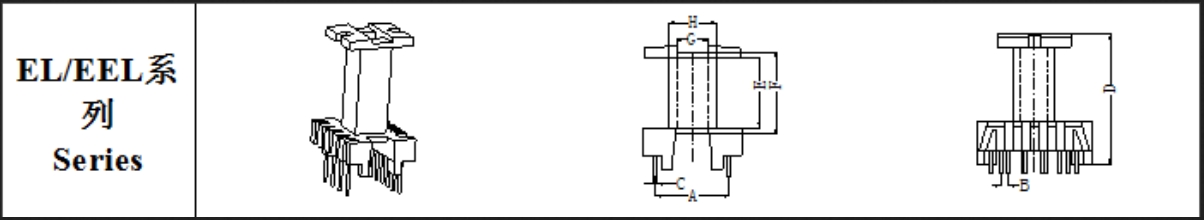

EL、EEL系列
序號型號品名ABC/ΦDEFGH完整尺寸NumberTypeModelnameB1B2G1G2H1H21EL-1613EL16-（4+6P）-1S11.532.50.729.117.819.75.44.46.96點擊查看2EEL-1901EL19-（5+7P）-1S254.53.50.815.618.921.25.45.477.1點擊查看3EEL-1901-1EL19-（5+7P）-1S254.53.50.815.618.921.25.45.477.1點擊查看4EEL-1902EL19-（5+5P）
在線詢價
| 序號 | 型 號 | 品 名 | A | B | C/Φ | D | E | F | G | H | 完整尺寸 | |||
| Number | Type | Model name | B1 | B2 | G1 | G2 | H1 | H2 | ||||||
| 1 | EL-1613 | EL16-（4+6P）-1S | 11.5 | 3 | 2.5 | 0.7 | 29.1 | 17.8 | 19.7 | 5.4 | 4.4 | 6.9 | 6 | 點擊查看 |
| 2 | EEL-1901 | EL19-（5+7P）-1S | 25 | 4.5 | 3.5 | 0.8 | 15.6 | 18.9 | 21.2 | 5.4 | 5.4 | 7 | 7.1 | 點擊查看 |
| 3 | EEL-1901-1 | EL19-（5+7P）-1S | 25 | 4.5 | 3.5 | 0.8 | 15.6 | 18.9 | 21.2 | 5.4 | 5.4 | 7 | 7.1 | 點擊查看 |
| 4 | EEL-1902 | EL19-（5+5P）-1S | 24.2 | 4.5 | 3.5 | 0.8 | 15.6 | 18.9 | 21.2 | 5.4 | 5.4 | 7 | 7.1 | 點擊查看 |
| 5 | EEL-1902-1 | EL19-（5+5P）-1S | 24.2 | 4.5 | 3.5 | 0.8 | 15.6 | 18.9 | 21.2 | 5.4 | 5.4 | 7 | 7.1 | 點擊查看 |
| 6 | EL-1904 | EL19-（4+6P）-1S | 12 | 3.5 | 2.7 | 0.6 | 29.3 | 19.6 | 21.8 | 5.4 | 5.4 | 7.2 | 7.2 | 點擊查看 |
| 7 | EL-1905 | EL19-（5+5P）-1S | 10 | 4 | 0.8 | 29.2 | 19.7 | 21.6 | 5.5 | 5.5 | 7.5 | 7.5 | 點擊查看 | |
| 8 | EL-2202 | EL22-（4+4P）-1S | 12.5 | 5 | 0.7 | 28.3 | 18.3 | 21.2 | 6.4 | 6.4 | 8.1 | 8.1 | 點擊查看 | |
| 9 | EEL-2210 | EL22-（4+4P）-1S | 10.5 | 4 | 0.8 | 30.9 | 20 | 21.6 | 6.1 | 6.1 | 7.7 | 7.7 | 點擊查看 | |
